AMPK beta 1 | HUABIO ET1612-56 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

AMPK beta 1

catalog :

ET1612-56

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

SD082-06

reactivity :

human, mouse, rat

application :

western blot, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

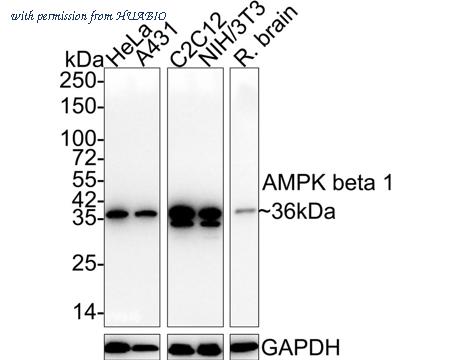

Western blot analysis of AMPK beta 1 on different lysates with Rabbit anti-AMPK beta 1 antibody (ET1612-56) at 1/1,000 dilution. Lane 1: HeLa cell lysate (20 µg/Lane) Lane 2: A431 cell lysate (20 µg/Lane) Lane 3: C2C12 cell lysate (20 µg/Lane) Lane 4: NIH/3T3 cell lysate (20 µg/Lane) Lane 5: Rat brain tissue lysate (40 µg/Lane) Predicted band size: 30 kDa Observed band size: 36 kDa Exposure time: 1 minute; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1612-56) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

Immunohistochemical analysis of paraffin-embedded human smooth muscle tissue using anti-AMPK beta 1 antibody. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1612-56, 1/200) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

image 3 :

Flow cytometric analysis of AMPK beta 1 was done on A431 cells. The cells were fixed, permeabilized and stained with the primary antibody (ET1612-56, 1/50) (red). After incubation of the primary antibody at room temperature for an hour, the cells were stained with a Alexa Fluor 488-conjugated Goat anti-Rabbit IgG Secondary antibody at 1/1000 dilution for 30 minutes.Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

product information

SKU :

ET1612-56

Target name :

AMPK beta 1

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IHC-P,FC,IF-Cell

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within human AMPK beta 1 aa 90-130.

Uniprot id :

Q9Y478>SwissProt: Q9Y478 Human;SwissProt: Q9R078 Mouse;SwissProt: P80386 Rat

Host :

Rabbit

Clone number :

SD082-06

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

HeLa cell lysate, A431 cell lysate, C2C12 cell lysate, NIH/3T3 cell lysate, rat brain tissue lysate, human smooth muscle tissue, A431, C2C12.

Molecular wt :

Predicted band size: 30 kDa

Subcellular location :

Cytosol, nucleoplasm, nucleus, cytoplasm, nucleotide-activated protein kinase complex.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:500-1:2,000 ;IHC-P: 1:50-1:200 ;FC: 1:50-1:100 ;IF-Cell: 1:100

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ET1612-56_4.jpg

Pic legend4 :

Immunocytochemistry analysis of C2C12 cells labeling AMPK beta 1 with Rabbit anti-AMPK beta 1 antibody (ET1612-56) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-AMPK beta 1 antibody (ET1612-56) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.
