ATG5 | HUABIO ET1611-38 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

ATG5

catalog :

ET1611-38

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

SN73-07

reactivity :

human, mouse, rat

application :

western blot, immunoprecipitation, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

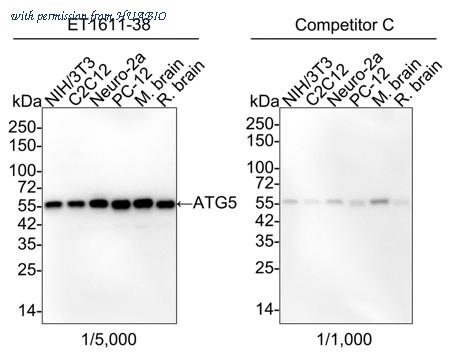

Western blot analysis of ATG5 on different lysates with Rabbit anti-ATG5 antibody (ET1611-38) at 1/5,000 dilution and competitor's antibody at 1/1,000 dilution. Lane 1: NIH/3T3 cell lysate (15 µg/Lane) Lane 2: C2C12 cell lysate (15 µg/Lane) Lane 3: Neuro-2a cell lysate (15 µg/Lane) Lane 4: PC-12 cell lysate (15 µg/Lane) Lane 5: Mouse brain tissue lysate (15 µg/Lane) Lane 6: Rat brain tissue lysate (15 µg/Lane) Predicted band size: 32 kDa Observed band size: 55 kDa Exposure time: 35 seconds; ECL: K1802; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1611-38) at 1/5,000 dilution and competitor's antibody at 1/1,000 dilution were used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

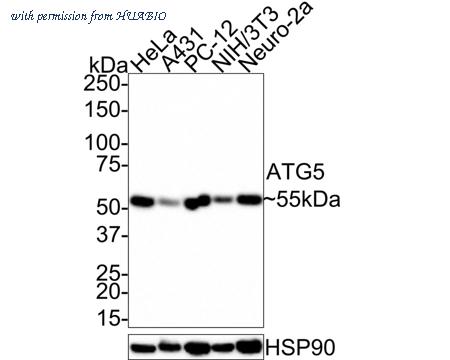

Western blot analysis of ATG5 on different lysates with Rabbit anti-ATG5 antibody (ET1611-38) at 1/5,000 dilution. Lane 1: HeLa cell lysate (20 µg/Lane) Lane 2: A431 cell lysate (20 µg/Lane) Lane 3: PC-12 cell lysate (20 µg/Lane) Lane 4: NIH/3T3 cell lysate (20 µg/Lane) Lane 5: Neuro-2a cell lysate (20 µg/Lane) Predicted band size: 32 kDa Observed band size: 55 kDa Exposure time: 1 minute; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1611-38) at 1/5,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/100,000 dilution was used for 1 hour at room temperature.

image 3 :

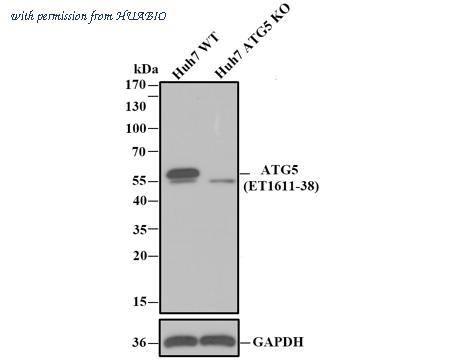

Western blot analysis of ATG5 with anti-ATG5 antibody [SN73-07] (ET1611-38) at 1/1,000 dilution. Lane 1: Wild-type Huh7 whole cell lysate. Lane 2: ATG5 knockout Huh7 whole cell lysate. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM in TBST for 1 hour at room temperature. The primary Anti-ATG5 antibody (ET1611-38, 1/1,000) and Anti-GAPDH antibody (ET1601-4, 1/10,000) were used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG H&L (HRP) Secondary Antibody (HA1001) at 1/200,000 dilution was used for 1 hour at room temperature. Cell lysate was provided by Ubigene Biosciences (Ubigene Biosciences Co., Ltd., Guangzhou, China).

product information

SKU :

ET1611-38

Target name :

ATG5

Species reactivity :

Human,Mouse,Rat,Monkey

Applications :

WB,IF-Cell,IF-Tissue,IHC-P,IP,FC

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within Human ATG5 aa 1-50 / 275.

Uniprot id :

Q9H1Y0>SwissProt: Q9H1Y0 Human;SwissProt: Q99J83 Mouse;SwissProt: Q3MQ06 Rat

Host :

Rabbit

Clone number :

SN73-07

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

NIH/3T3 cell lysate, C2C12 cell lysate, Neuro-2a cell lysate, PC-12 cell lysate, mouse brain tissue lysate, rat brain tissue lysate, HeLa cell lysate, A431 cell lysate, human brain tissue, NIH/3T3, PC-12.

Molecular wt :

Predicted band size: 32 kDa

Subcellular location :

Cytoplasm, Membrane.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:5,000-1:10,000 ;IF-Cell: 1:100-1:250 ;IF-Tissue: 1:50-1:200 ;IHC-P: 1:2,000 ;IP: 1-2μg/sample ;FC: 1:1,000

Advanced Validation :

Knockout (KO)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ET1611-38_4.jpg

Pic legend4 :

Western blot analysis of ATG5 with anti-ATG5 antibody [SN73-07] (ET1611-38) at 1/1,000 dilution. Lane 1: Wild-type Vero-E6 whole cell lysate. Lane 2: ATG5 knockout Vero-E6 whole cell lysate. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM in TBST for 1 hour at room temperature. The primary Anti-ATG5 antibody (ET1611-38, 1/1,000) and Anti-GAPDH antibody (ET1601-4, 1/10,000) were used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG H&L (HRP) Secondary Antibody (HA1001) at 1/200,000 dilution was used for 1 hour at room temperature. Cell lysate was provided by Ubigene Biosciences (Ubigene Biosciences Co., Ltd., Guangzhou, China).

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ET1611-38_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded human brain tissue with Rabbit anti-ATG5 antibody (ET1611-38) at 1/2,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1611-38) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/ET1611-38_6.jpg

Pic legend6 :

Immunocytochemistry analysis of NIH/3T3 cells labeling ATG5 with Rabbit anti-ATG5 antibody (ET1611-38) at 1/250 dilution. Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-ATG5 antibody (ET1611-38) at 1/250 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/ET1611-38_7.jpg

Pic legend7 :

Immunocytochemistry analysis of PC-12 cells labeling ATG5 with Rabbit anti-ATG5 antibody (ET1611-38) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-ATG5 antibody (ET1611-38) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/ET1611-38_8.jpg

Pic legend8 :

Flow cytometric analysis of NIH/3T3 cells labeling ATG5. Cells were fixed and permeabilized. Then stained with the primary antibody (ET1611-38, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

Pic img9 :

https://storage.huabio.cn/huabio/productImg/ET1611-38_9.jpg

Pic legend9 :

Flow cytometric analysis of PC-12 cells labeling ATG5. Cells were fixed and permeabilized. Then stained with the primary antibody (ET1611-38, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

Pic img10 :

https://storage.huabio.cn/huabio/productImg/ET1611-38_10.jpg

Pic legend10 :

ATG5 was immunoprecipitated in 0.2mg HeLa cell lysate with ET1611-38 at 2 µg/10 µl beads. Western blot was performed from the immunoprecipitate using ET1611-38 at 1/2,000 dilution. Anti-Rabbit IgG for IP Nano-secondary antibody (NBI01H) at 1/5,000 dilution was used for 1 hour at room temperature. Lane 1: HeLa cell lysate (input) Lane 2: Rabbit IgG instead of ET1611-38 in HeLa cell lysate Lane 3: ET1611-38 IP in HeLa cell lysate Blocking/Dilution buffer: 5% NFDM/TBST Exposure time: 1 minute 21 seconds; ECL: K1802
