DIABLO | HUABIO ET1610-74 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

DIABLO

catalog :

ET1610-74

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

SC67-06

reactivity :

human, mouse

application :

western blot, immunoprecipitation, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

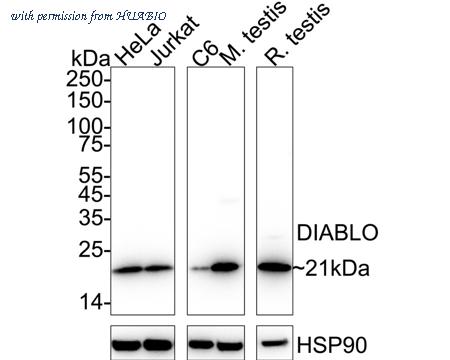

Western blot analysis of DIABLO on different lysates with Rabbit anti-DIABLO antibody (ET1610-74) at 1/2,000 dilution. Lane 1: HeLa cell lysate (20 µg/Lane) Lane 2: Jurkat cell lysate (20 µg/Lane) Lane 3: C6 cell lysate (20 µg/Lane) Lane 4: Mouse testis tissue lysate (40 µg/Lane) Lane 5: Rat testis tissue lysate (40 µg/Lane) Predicted band size: 27 kDa Observed band size: 21 kDa Exposure time: 2 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1610-74) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

Immunocytochemistry analysis of HeLa cells labeling DIABLO with Rabbit anti-DIABLO antibody (ET1610-74) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-DIABLO antibody (ET1610-74) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Counterstained with Mitotracker. Nuclear DNA was labelled in blue with DAPI.

image 3 :

Immunocytochemistry analysis of Neuro-2a cells labeling DIABLO with Rabbit anti-DIABLO antibody (ET1610-74) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-DIABLO antibody (ET1610-74) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Counterstained with Mitotracker. Nuclear DNA was labelled in blue with DAPI.

product information

SKU :

ET1610-74

Target name :

DIABLO

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IF-Tissue,IHC-P,IP,FC

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within Human DIABLO aa 190-239 / 239.

Uniprot id :

Q9NR28>SwissProt: Q9NR28 Human;SwissProt: Q9JIQ3 Mouse;Unigene: 9090 Rat

Host :

Rabbit

Clone number :

SC67-06

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

HeLa cell lysate, Jurkat cell lysate, C6 cell lysate, Mouse testis tissue lysate, Rat testis tissue lysate, HeLa, Neuro-2a, C6, human spleen tissue, mouse overy tissue, mouse skin tissue, HepG2.

Molecular wt :

Predicted band size: 27 kDa

Subcellular location :

Mitochondrion

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:2,000 ;IF-Cell: 1:50-1:200 ;IF-Tissue: 1:50-1:200 ;IHC-P: 1:50-1:200 ;FC: 1:50-1:100

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ET1610-74_4.jpg

Pic legend4 :

Immunocytochemistry analysis of C6 cells labeling DIABLO with Rabbit anti-DIABLO antibody (ET1610-74) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-DIABLO antibody (ET1610-74) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Counterstained with Mitotracker. Nuclear DNA was labelled in blue with DAPI.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ET1610-74_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded human spleen tissue using anti-DIABLO antibody. Counter stained with hematoxylin.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/ET1610-74_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded mouse overy tissue using anti-DIABLO antibody. Counter stained with hematoxylin.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/ET1610-74_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded mouse skin tissue using anti-DIABLO antibody. Counter stained with hematoxylin.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/ET1610-74_8.jpg

Pic legend8 :

Flow cytometric analysis of HepG2 cells with DIABLO antibody at 1/50 dilution (red) compared with an unlabelled control (cells without incubation with primary antibody; black). Alexa Fluor 488-conjugated goat anti rabbit IgG was used as the secondary antibody.
