ATG9A | HUABIO ET1610-71 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

ATG9A

catalog :

ET1610-71

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

SC67-05

reactivity :

human, mouse, rat

application :

western blot, immunoprecipitation, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

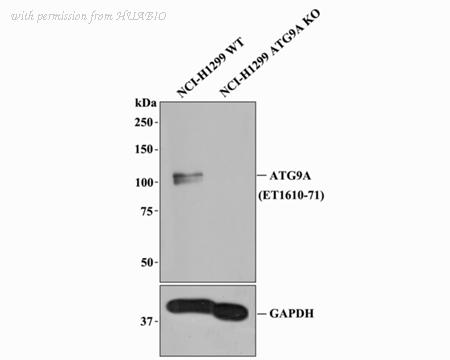

All lanes: Western blot analysis of ATG9A with anti-ATG9A antibody [SC67-05] (ET1610-71) at 1:1,000 dilution. Lane 1: Wild-type NCI-H1299 whole cell lysate (20 µg). Lane 2: ATG9A knockout NCI-H1299 whole cell lysate (20 µg). ET1610-71 was shown to specifically react with ATG9A in wild-type NCI-H1299 cells. No band was observed when ATG9A knockout sample was tested. Wild-type and ATG9A knockout samples were subjected to SDS-PAGE. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM in TBST for 1 hour at room temperature. The primary antibody (ET1610-71, 1/1,000) and Loading control antibody (Rabbit anti-GAPDH , ET1601-4, 1/10,000) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG-HRP Secondary Antibody (HA1001) at 1:200,000 dilution was used for 1 hour at room temperature.

image 2 :

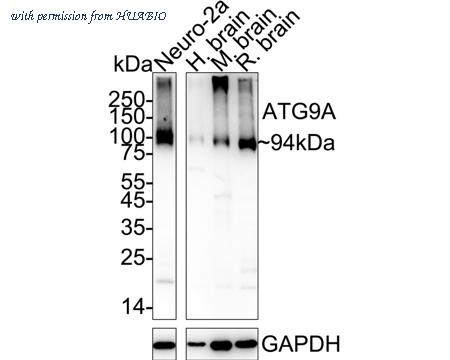

Western blot analysis of ATG9A on different lysates with Rabbit anti-ATG9A antibody (ET1610-71) at 1/1,000 dilution. Lane 1: Neuro-2a cell lysate Lane 2: Human brain tissue lysate Lane 3: Mouse brain tissue lysate Lane 4: Rat brain tissue lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 94 kDa Observed band size: 94 kDa Exposure time: 20 seconds; ECL: K1802; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1610-71) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 3 :

Immunohistochemical analysis of paraffin-embedded mouse brain tissue with Rabbit anti-ATG9A antibody (ET1610-71) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1610-71) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

product information

SKU :

ET1610-71

Target name :

ATG9A

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IHC-P,IP

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within Human ATG9A aa 799-839 / 839.

Uniprot id :

Q7Z3C6>SwissProt: Q7Z3C6 Human;SwissProt: Q68FE2 Mouse;SwissProt: Q5FWU3 Rat

Host :

Rabbit

Clone number :

SC67-05

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

NCI-H1299 cell lysate, Neuro-2a cell lysate, Human brain tissue lysate, Mouse brain tissue lysate, Rat brain tissue lysate, mouse brain tissue, rat brain tissue.

Molecular wt :

Predicted band size: 94 kDa

Subcellular location :

Cytoplasmic vesicle, Golgi apparatus, Late endosome membrane, Endoplasmic reticulum membrane.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:1,000 ;IHC-P: 1:50-1:200 ;IP: Use at an assay dependent concentration.

Advanced Validation :

Knockout (KO)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ET1610-71_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded rat brain tissue with Rabbit anti-ATG9A antibody (ET1610-71) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1610-71) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

more info or order :

HUABIO product webpage
