AIF | HUABIO ET1603-4 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

AIF

catalog :

ET1603-4

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

SZ05-01

reactivity :

human, mouse, rat

application :

western blot, immunoprecipitation, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

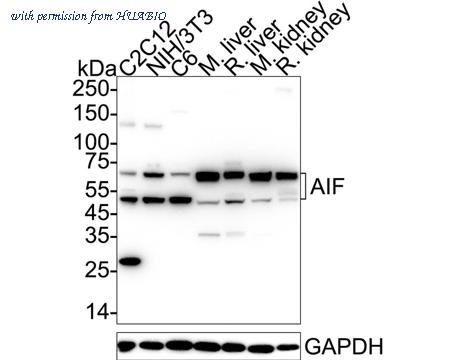

Western blot analysis of AIF on different lysates with Rabbit anti-AIF antibody (ET1603-4) at 1/1,000 dilution. Lane 1: C2C12 cell lysate (20 µg/Lane) Lane 2: NIH/3T3 cell lysate (20 µg/Lane) Lane 3: C6 cell lysate (20 µg/Lane) Lane 4: Mouse liver tissue lysate (40 µg/Lane) Lane 5: Rat liver tissue lysate (40 µg/Lane) Lane 6: Mouse kidney tissue lysate (40 µg/Lane) Lane 7: Rat kidney tissue lysate (40 µg/Lane) Predicted band size: 67 kDa Observed band size: 67/50 kDa Exposure time: 6 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1603-4) at 1/500 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

All lanes: Western blot analysis of AIF with anti-AIF antibody (ET1603-4) at 1/500 dilution. Lane 1: Wild-type Hela whole cell lysate. Lane 2: AIF knockout Hela whole cell lysate. ET1603-4 was shown to specifically react with AIF in Wild-type Hela cells. No band was observed when AIF knockout sample was tested. Wild-type and AIF knockout samples were subjected to SDS-PAGE. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM in TBST for 1 hour at room temperature. The primary Anti-AIF antibody (ET1603-4, 1/500) and Anti-HSP90 antibody (ET1605-56, 1/10,000) were used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG H&L (HRP) Secondary Antibody (HA1001) at 1:300,000 dilution was used for 1 hour at room temperature.

image 3 :

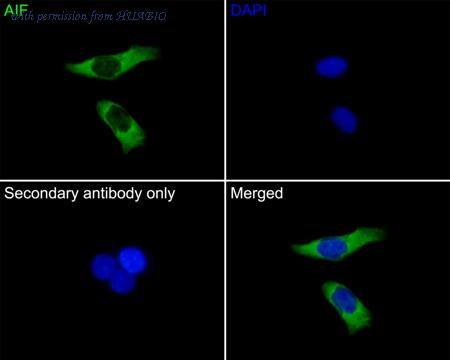

Immunocytochemistry analysis of SKOV-3 cells labeling AIF with Rabbit anti-AIF antibody (ET1603-4) at 1/50 dilution. Cells were fixed in 4% paraformaldehyde for 10 minutes at 37 ℃, permeabilized with 0.05% Triton X-100 in PBS for 20 minutes, and then blocked with 2% negative goat serum for 30 minutes at room temperature. Cells were then incubated with Rabbit anti-AIF antibody (ET1603-4) at 1/50 dilution in 2% negative goat serum overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.

product information

SKU :

ET1603-4

Target name :

AIF

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IHC-P,IP,FC

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within Human AIF aa 502-551 / 613.

Uniprot id :

O95831>SwissProt: O95831 Human;SwissProt: Q9Z0X1 Mouse;SwissProt: Q9JM53 Rat

Host :

Rabbit

Clone number :

SZ05-01

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

SKOV-3 cell lysate, Daudi cell lysate, MCF-7 cell lysate, Hela cell lysate, C2C12 cell lysate, NIH/3T3 cell lysate, C6 cell lysate, Mouse liver tissue lysate, Rat liver tissue lysate, Mouse kidney tissue lysate, Rat kidney tissue lysate, MCF-7, SKOV-3, C2C12, human liver tissue, human kidney tissue, mouse liver tissue, mouse heart tissue, rat liver tissue, rat kidney tissue, HeLa.

Molecular wt :

Predicted band size: 67 kDa

Subcellular location :

Mitochondrion intermembrane space, Mitochondrion inner membrane, Cytoplasm, Nucleus, Membrane.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:1,000-1:5,000 ;IF-Cell: 1:50-1:200 ;IHC-P: 1:1,000 ;FC: 1:1,000 ;IP: Use at an assay dependent concentration.

Advanced Validation :

Knockout (KO)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ET1603-4_4.jpg

Pic legend4 :

Immunocytochemistry analysis of C2C12 cells labeling AIF with Rabbit anti-AIF antibody (ET1603-4) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-AIF antibody (ET1603-4) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ET1603-4_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded human liver tissue with Rabbit anti-AIF antibody (ET1603-4) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1603-4) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/ET1603-4_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-AIF antibody (ET1603-4) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1603-4) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/ET1603-4_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded rat liver tissue with Rabbit anti-AIF antibody (ET1603-4) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1603-4) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/ET1603-4_8.jpg

Pic legend8 :

Immunohistochemical analysis of paraffin-embedded rat kidney tissue with Rabbit anti-AIF antibody (ET1603-4) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1603-4) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img9 :

https://storage.huabio.cn/huabio/productImg/ET1603-4_9.jpg

Pic legend9 :

Flow cytometric analysis of HeLa cells labeling AIF. Cells were fixed and permeabilized. Then stained with the primary antibody (ET1603-4, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).
