Phospho-Glycogen synthase 1 (S641) | HUABIO ET1602-13 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

Phospho-Glycogen synthase 1 (S641)

catalog :

ET1602-13

quantity :

100μl

price :

385.00 USD

clonality :

monoclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

SR46-06

reactivity :

human, mouse, rat

application :

western blot, immunoprecipitation, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

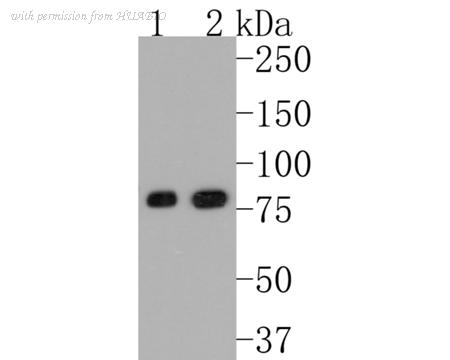

Western blot analysis of Phospho-Glycogen synthase 1 (S641) on different lysates. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ET1602-13, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:200,000 dilution was used for 1 hour at room temperature. Positive control: Lane 1: SK-Br-3 cell lysate Lane 2: A431 cell lysate

image 2 :

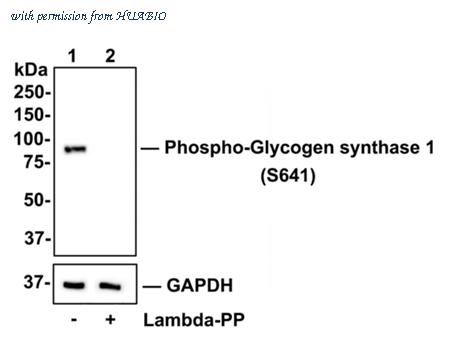

Western blot analysis of Phospho-Glycogen synthase 1 (S641) on HepG2 cell lysates. Lane 1: HepG2 cells, whole cell lysate, 10ug/lane Lane 2: HepG2 cells treated with 2.8ug/ul lambda-PP for 30 minutes, whole cell lysates, 10ug/lane All lanes : Anti-Phospho-Glycogen synthase 1 (S641) antibody (ET1602-13) at 1/500 dilution. Anti-GAPDH antibody (ET1601-4) at 1/10,000 dilution. Goat Anti-Rabbit IgG H&L (HRP) (HA1001) at 1/200,000 dilution. Predicted band size: 84 kDa Observed band size: 84 kDa Blocking and diluting buffer: 5% BSA. Exposure time: 1 minute 34 seconds

image 3 :

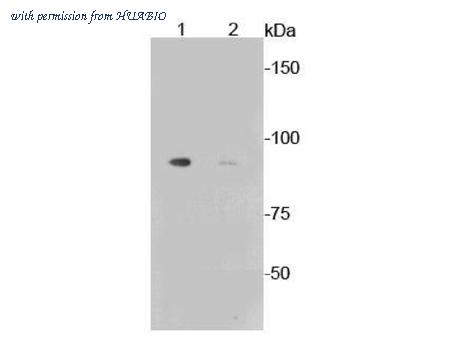

Western blot analysis of Phospho-Glycogen synthase 1 (S641) on different lysates. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ET1602-13, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature. Positive control: Lane 1: Mouse liver tissue lysate, untreated Lane 2: Mouse liver tissue lysate, treated with AP

product information

SKU :

ET1602-13

Target name :

Phospho-Glycogen synthase 1 (S641)

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IHC-P,IP

Conjugate :

Non-conjugated

Immunogen :

Synthetic phospho-peptide corresponding to residues surrounding Ser641 of Human Glycogen synthase 1.

Uniprot id :

P13807>SwissProt: P13807 Human;SwissProt: Q9Z1E4 Mouse;Entrez Gene: 690987 Rat

Host :

Rabbit

Clone number :

SR46-06

Isotype :

IgG

Size :

100μl

List Price :

385.00 USD

Storage Buffer :

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein A affinity purified.

Product type :

Recombinant Rabbit monoclonal Antibody

Positive control :

SK-Br-3 cell lysate, A431 cell lysate, HepG2 cell lysate, Mouse liver tissue lysate, A549, NIH/3T3, mouse liver tissue, mouse skeletal muscle tissue, mouse smooth muscle tissue, rat skeletal muscle tissue.

Molecular wt :

Predicted band size: 84 kDa

Subcellular location :

Cytoplasm

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:500 ;IF-Cell: 1:50 ;IHC-P: 1:50-1:200 ;IP: Use at an assay dependent concentration.

Advanced Validation :

Cell treatment (CT)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ET1602-13_4.jpg

Pic legend4 :

ICC staining of Phospho-Glycogen synthase 1 (S641) in A549 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ET1602-13, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ET1602-13_5.jpg

Pic legend5 :

ICC staining of Phospho-Glycogen synthase 1 (S641) in NIH/3T3 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ET1602-13, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

Pic img6 :

https://storage.huabio.cn/huabio/productImg/ET1602-13_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded mouse liver tissue using anti-Phospho-Glycogen synthase 1 (S641) antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1602-13, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/ET1602-13_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded mouse skeletal muscle tissue with Rabbit anti-Phospho-Glycogen synthase 1 (S641) antibody (ET1602-13) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1602-13) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/ET1602-13_8.jpg

Pic legend8 :

Immunohistochemical analysis of paraffin-embedded mouse smooth muscle tissue using anti-Phospho-Glycogen synthase 1 (S641) antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1602-13, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img9 :

https://storage.huabio.cn/huabio/productImg/ET1602-13_9.jpg

Pic legend9 :

Immunohistochemical analysis of paraffin-embedded rat skeletal muscle tissue with Rabbit anti-Phospho-Glycogen synthase 1 (S641) antibody (ET1602-13) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1602-13) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
