PCB | HUABIO ER64531 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

PCB

catalog :

ER64531

quantity :

100μl

price :

330 USD

clonality :

polyclonal

host :

domestic rabbit

conjugate :

nonconjugated

reactivity :

human, mouse, rat

application :

western blot, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

Western blot analysis of PCB on different lysates with Rabbit anti-PCB antibody (ER64531) at 1/5,000 dilution. Lane 1: HepG2 cell lysate Lane 2: Huh7 cell lysate Lane 3: NIH/3T3 cell lysate Lane 4: PC-12 cell lysate Lane 5: Mouse kidney tissue lysate Lane 6: Rat liver tissue lysate Lane 7: Rat brain tissue lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 130 kDa Observed band size: 130 kDa Exposure time: 2 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ER64531) at 1/5,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

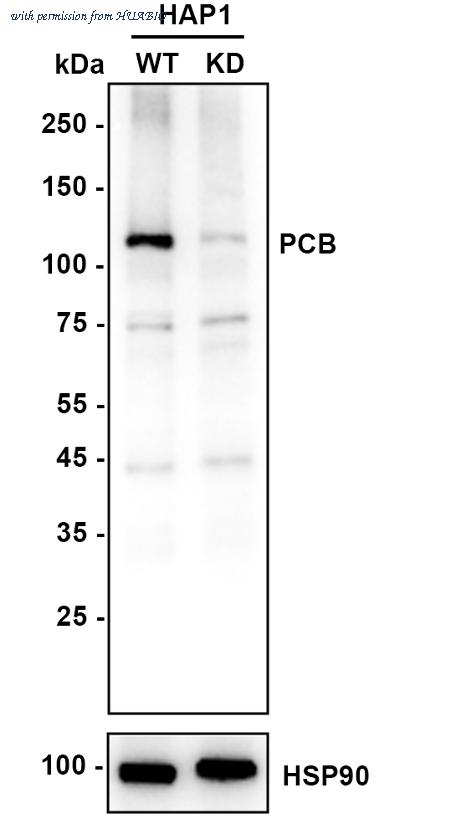

Western blot analysis of PCB on different lysates with Rabbit anti-PCB antibody (ER64531) at 1/10,000 dilution. Lane 1: HAP1-parental cell lysate Lane 2: HAP1-PCB KD cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 130 kDa Observed band size: 130 kDa Exposure time: 21 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ER64531) at 1/10,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 3 :

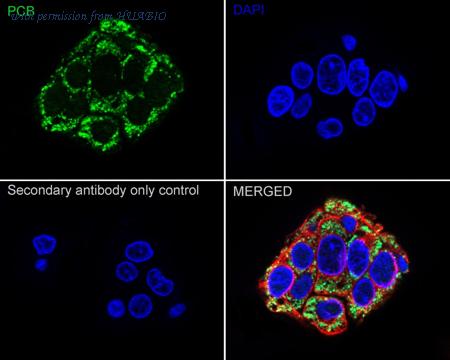

Immunocytochemistry analysis of HepG2 cells labeling PCB with Rabbit anti-PCB antibody (ER64531) at 1/500 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-PCB antibody (ER64531) at 1/500 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

product information

SKU :

ER64531

Target name :

PCB

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IHC-P,FC

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within Human PCB aa 450-1178.

Uniprot id :

P11498>SwissProt: P11498 Human;SwissProt: Q05920 Mouse;SwissProt: P52873 Rat

Host :

Rabbit

Isotype :

IgG

Size :

100μl

List Price :

330 USD

Storage Buffer :

PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Immunogen affinity purified.

Product type :

Rabbit polyclonal Antibody

Positive control :

HepG2 cell lysate, Huh7 cell lysate, NIH/3T3 cell lysate, PC-12 cell lysate, Mouse kidney tissue lysate, Rat liver tissue lysate, Rat brain tissue lysate, HepG2, NIH/3T3, mouse liver tissue, rat liver tissue.

Molecular wt :

Predicted band size: 130 kDa

Subcellular location :

Mitochondrion matrix.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:5,000-1:20,000 ;IF-Cell: 1:500 ;IHC-P: 1:1,000 ;FC: 1:1,000

Advanced Validation :

Knockdown (KD)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ER64531_4.jpg

Pic legend4 :

Immunocytochemistry analysis of NIH/3T3 cells labeling PCB with Rabbit anti-PCB antibody (ER64531) at 1/500 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-PCB antibody (ER64531) at 1/500 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ER64531_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded mouse liver tissue with Rabbit anti-PCB antibody (ER64531) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER64531) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/ER64531_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded rat liver tissue with Rabbit anti-PCB antibody (ER64531) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER64531) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/ER64531_7.jpg

Pic legend7 :

Flow cytometric analysis of HepG2 cells labeling PCB. Cells were fixed and permeabilized. Then stained with the primary antibody (ER64531, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

Pic img8 :

https://storage.huabio.cn/huabio/productImg/ER64531_8.jpg

Pic legend8 :

Flow cytometric analysis of NIH/3T3 cells labeling PCB. Cells were fixed and permeabilized. Then stained with the primary antibody (ER64531, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).
