GAP43 | HUABIO ER40201 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

GAP43

catalog :

ER40201

quantity :

100μl

price :

330 USD

clonality :

polyclonal

host :

domestic rabbit

conjugate :

nonconjugated

reactivity :

human, mouse, rat

application :

western blot, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage

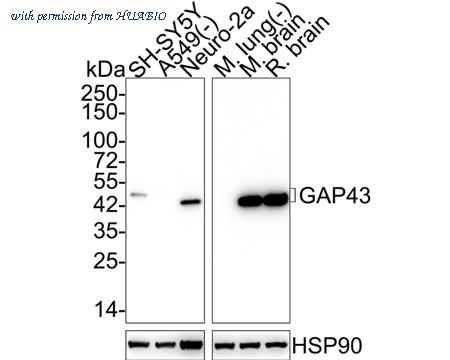

image 1 :

Western blot analysis of GAP43 on different lysates with Rabbit anti-GAP43 antibody (ER40201) at 1/100,000 dilution. Lane 1: SH-SY5Y cell lysate Lane 2: A549 cell lysate (negative) Lane 3: Neuro-2a cell lysate Lane 4: Mouse lung tissue lysate (negative) Lane 5: Mouse brain tissue lysate Lane 6: Rat brain tissue lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 25 kDa Observed band size: 43/45 kDa Exposure time: 3 minutes 20 seconds; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ER40201) at 1/100,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

Immunocytochemistry analysis of Neuro-2a cells labeling GAP43 with Rabbit anti-GAP43 antibody (ER40201) at 1/200 dilution. Cells were fixed in 100% precooled methanol for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-GAP43 antibody (ER40201) at 1/200 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

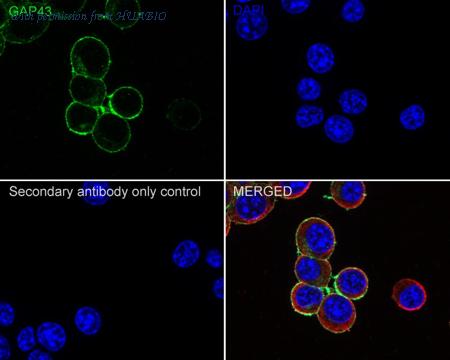

image 3 :

Immunocytochemistry analysis of SH-SY5Y cells labeling GAP43 with Rabbit anti-GAP43 antibody (ER40201) at 1/100 dilution. Cells were fixed in 100% precooled methanol for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-GAP43 antibody (ER40201) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

product information

SKU :

ER40201

Target name :

GAP43

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IHC-P,FC

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within mouse GAP43 aa 178-227 / 227.

Uniprot id :

P17677>SwissProt: P17677 Human;SwissProt: P06837 Mouse;SwissProt: P07936 Rat

Host :

Rabbit

Isotype :

IgG

Size :

100μl

List Price :

330 USD

Storage Buffer :

1*PBS (pH7.4), 0.2% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Immunogen affinity purified.

Product type :

Rabbit polyclonal Antibody

Positive control :

SH-SY5Y cell lysate, Neuro-2a cell lysate, mouse brain tissue lysate, rat brain tissue lysate, Neuro-2a, rat brain tissue, mouse brain tissue, SH-SY5Y.

Molecular wt :

Predicted band size: 25 kDa

Subcellular location :

Cell membrane, Cell projection, Cytoplasm, Membrane, Synapse.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:100,000 ;IF-Cell: 1:200 ;IHC-P: 1:1,000 ;FC: 1:1,000

Advanced Validation :

Relative expression (RE)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ER40201_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded human brain tissue with Rabbit anti-GAP43 antibody (ER40201) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER40201) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ER40201_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded mouse brain tissue with Rabbit anti-GAP43 antibody (ER40201) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER40201) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/ER40201_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded rat brain tissue with Rabbit anti-GAP43 antibody (ER40201) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER40201) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/ER40201_7.jpg

Pic legend7 :

Intracellular Flow Cytometry analysis of SH-SY5Y labeling GAP43 with purified ER40201 at 1/1,000 dilution (1 µg/ml) (red). Cells were fixed with 4% PFA and permeabilised with 90% methanol. Rabbit monoclonal IgG (green) was used as the isotype control, cells without incubation with primary antibody and secondary antibody (black) were used as the unlabeled control. A Goat anti-rabbit IgG iFluor™ 488 (HA1121)(1/1,000 dilution) was used as the secondary antibody.

more info or order :

HUABIO product webpage
