product summary
Loading...
company name :
HUABIO
product type :
antibody
product name :
Bit1
catalog :
ER2001-71
quantity :
100μl
price :
330 USD
clonality :
polyclonal
host :
domestic rabbit
conjugate :
nonconjugated
reactivity :
human
application :
western blot
more info or order :
image 1 :

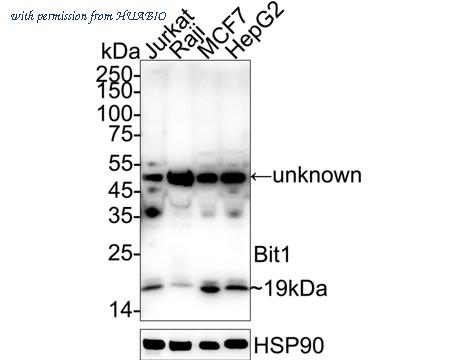

Western blot analysis of Bit1 on different lysates with Rabbit anti-Bit1 antibody (ER2001-71) at 1/2,000 dilution.
Lane 1: Jurkat cell lysate
Lane 2: Raji cell lysate
Lane 3: MCF7 cell lysate
Lane 4: HepG2 cell lysate
Lysates/proteins at 20 µg/Lane.
Predicted band size: 19 kDa
Observed band size: 19 kDa
Exposure time: 14 seconds; ECL: K1801;
4-20% SDS-PAGE gel.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ER2001-71) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.
product information
SKU :
ER2001-71
Target name :
Bit1
Species reactivity :
Human
Applications :
WB
Conjugate :
Non-conjugated
Immunogen :
Recombinant protein within human Bit1 aa 1-179.
Uniprot id :
Q9Y3E5>SwissProt: Q9Y3E5 Human
Host :
Rabbit
Isotype :
IgG
Size :
100μl
List Price :
330 USD
Storage Buffer :
1*TBS (pH7.4), 0.2% BSA, 50% Glycerol. Preservative: 0.05% Sodium Azide.
Form :
Liquid
Storage Instruction :
Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.
Purity :
Immunogen affinity purified.
Product type :
Rabbit polyclonal Antibody
Positive control :
Jurkat cell lysate, Raji cell lysate, MCF7 cell lysate, HepG2 cell lysate.
Molecular wt :
Predicted band size: 19 kDa.
Subcellular location :
Mitochondrion outer membrane.
Concentration :
1 mg/mL.
Recommended dilutions :
WB: 1:2,000
more info or order :
