CLIC4 | HUABIO ER1902-48 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

CLIC4

catalog :

ER1902-48

quantity :

100μl

price :

330 USD

clonality :

polyclonal

host :

domestic rabbit

conjugate :

nonconjugated

reactivity :

human, mouse, rat

application :

western blot, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

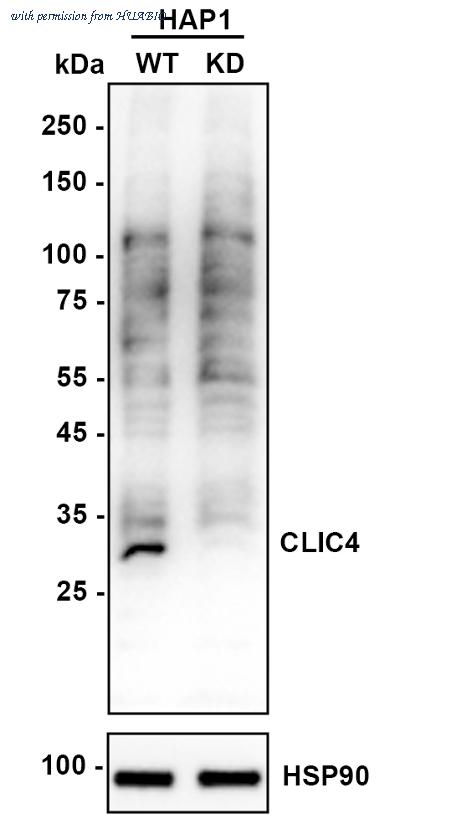

Western blot analysis of CLIC4 on different lysates with Rabbit anti-CLIC4 antibody (ER1902-48) at 1/1,000 dilution. Lane 1: HAP1-parental cell lysate Lane 2: HAP1-CLIC4 KD cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 29 kDa Observed band size: 29 kDa Exposure time: 120 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ER1902-48) at 1/1,000 dilution was used in K1803 at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

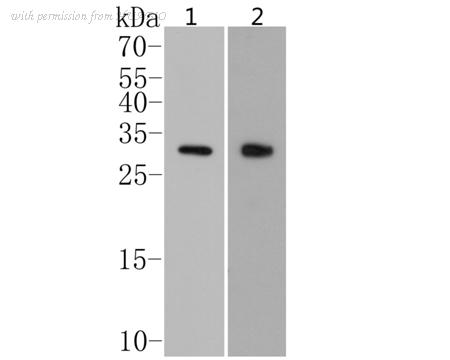

Western blot analysis of CLIC4 on rat kidney (1) and mouse kidney (2) tissue lysate. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ER1902-48, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.

image 3 :

Immunohistochemical analysis of paraffin-embedded rat skeletal muscle tissue using anti-CLIC4 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1902-48, 1/100) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

product information

SKU :

ER1902-48

Target name :

CLIC4

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IHC-P,FC

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within Human CLIC4 aa 1-50 / 253.

Uniprot id :

Q9Y696>SwissProt: Q9Y696 Human;SwissProt: Q9QYB1 Mouse;SwissProt: Q9Z0W7 Rat

Host :

Rabbit

Isotype :

IgG

Size :

100μl

List Price :

330 USD

Storage Buffer :

1*PBS (pH7.4), 0.2% BSA, 50% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Immunogen affinity purified.

Product type :

Rabbit polyclonal Antibody

Positive control :

Rat kidney and mouse kidney tissue lysates, rat skeletal muscle tissue, human kidney tissue, human placenta tissue, mouse heart tissue, 293T.

Molecular wt :

Predicted band size: 29 kDa

Subcellular location :

Cell junction, Cell membrane, Cytoplasm, Cytoplasmic vesicle, Cytoskeleton, Membrane, Mitochondrion, Nucleus.

Concentration :

1 mg/ml.

Recommended dilutions :

WB: 1:500-1:1000 ;IHC-P: 1:50-1:200 ;FC: 1:50-1:100

Advanced Validation :

Knockdown (KD)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ER1902-48_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded human kidney tissue using anti-CLIC4 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1902-48, 1/100) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ER1902-48_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded human placenta tissue using anti-CLIC4 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1902-48, 1/100) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/ER1902-48_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded mouse heart tissue using anti-CLIC4 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1902-48, 1/100) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/ER1902-48_7.jpg

Pic legend7 :

Flow cytometric analysis of CLIC4 was done on 293T cells. The cells were fixed, permeabilized and stained with the primary antibody (ER1902-48, 1/100) (red). After incubation of the primary antibody at room temperature for an hour, the cells were stained with a Alexa Fluor 488-conjugated goat anti-rabbit IgG Secondary antibody at 1/500 dilution for 30 minutes.Unlabelled sample was used as a control (cells without incubation with primary antibody; black).
