Connexin 45 / GJA7 / Cx45 | HUABIO ER1803-93 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

Connexin 45 / GJA7 / Cx45

catalog :

ER1803-93

quantity :

100μl

price :

330 USD

clonality :

polyclonal

host :

domestic rabbit

conjugate :

nonconjugated

reactivity :

human, mouse, rat

application :

western blot, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage

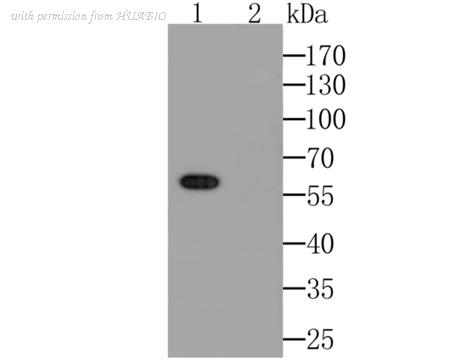

image 1 :

Western blot analysis of Connexin 45 / GJA7 / Cx45 on SH-SY5Y cell lysate. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody was used at a 1:1,000 dilution in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature. Lane 1: Anti-Connexin-45 Antibody; Lane 2: Anti-Connexin-45 Antibody, pre-incubated with the immunizaiton peptide.

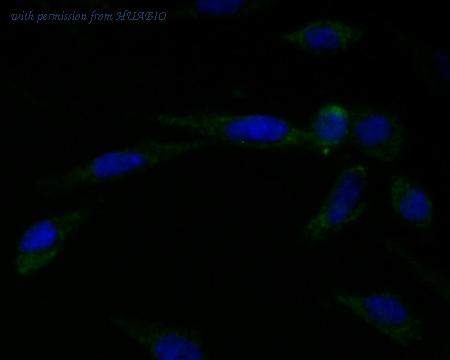

image 2 :

ICC staining Connexin 45 in SH-SY5Y cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with Connexin 45 antibody at a dilution of 1:100 for 1 hour at room temperature, washed with PBS. Alexa Fluorc™ 488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/100 dilution. The nuclear counter stain is DAPI (blue).

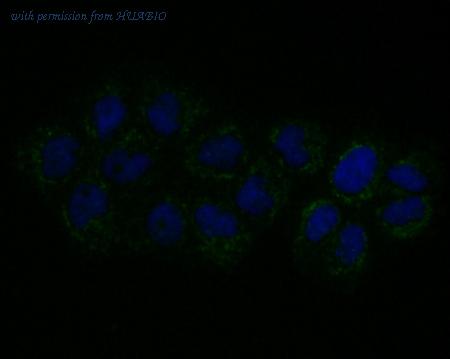

image 3 :

ICC staining Connexin 45 in A431 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with Connexin 45 antibody at a dilution of 1:100 for 1 hour at room temperature, washed with PBS. Alexa Fluorc™ 488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/100 dilution. The nuclear counter stain is DAPI (blue).

product information

SKU :

ER1803-93

Target name :

Connexin 45 / GJA7 / Cx45

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IHC-P

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within Human Connexin 45 aa 257-396 / 396.

Uniprot id :

P36383>SwissProt: P36383 Human;SwissProt: P28229 Mouse;SwissProt: A4GG66 Rat

Host :

Rabbit

Isotype :

IgG

Size :

100μl

List Price :

330 USD

Storage Buffer :

1*PBS (pH7.4), 0.2% BSA, 50% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Immunogen affinity purified.

Product type :

Rabbit polyclonal Antibody

Positive control :

SH-SY5Y, A431, rat uterus tissue, human liver cancer tissue, human kidney tissue, human placenta tissue.

Molecular wt :

Predicted band size: 45 kDa

Subcellular location :

Cell membrane, Gap junction.

Concentration :

1 mg/mL.

Recommended dilutions :

WB:1:500-1:1000 ;IF-Cell:1:500-1:100 ;IHC-P:1:50-1:100

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ER1803-93_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded rat uterus tissue using anti-Connexin 45 / GJA7 / Cx45 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the antibody (ER1803-93) at 1/50 dilution, for 30 minutes at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. Counter stained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ER1803-93_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded human liver cancer tissue using anti-Connexin 45 / GJA7 / Cx45 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the antibody (ER1803-93) at 1/50 dilution, for 30 minutes at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. Counter stained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/ER1803-93_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded human kidney tissue using anti-Connexin 45 / GJA7 / Cx45 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the antibody (ER1803-93) at 1/50 dilution, for 30 minutes at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. Counter stained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/ER1803-93_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded human placenta tissue using anti-Connexin 45 / GJA7 / Cx45 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the antibody (ER1803-93) at 1/50 dilution, for 30 minutes at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. Counter stained with hematoxylin and mounted with DPX.
