Calnexin | HUABIO ER1803-42 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

Calnexin

catalog :

ER1803-42

quantity :

100μl

price :

330 USD

clonality :

polyclonal

host :

domestic rabbit

conjugate :

nonconjugated

reactivity :

human, mouse, rat

application :

western blot, immunoprecipitation, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

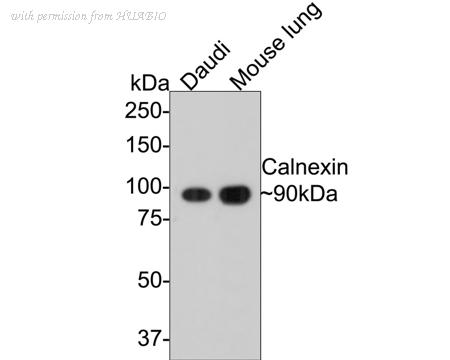

Western blot analysis of Calnexin on different lysates with Rabbit anti-Calnexin antibody (ER1803-42) at 1/5,000 dilution. Lane 1: Daudi cell lysate (10 µg/Lane) Lane 2: Mouse lung tissue lysate (20 µg/Lane) Predicted band size: 68 kDa Observed band size: 90 kDa Exposure time: 2 minutes; 8% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ER1803-42) at 1/5,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/300,000 dilution was used for 1 hour at room temperature.

image 2 :

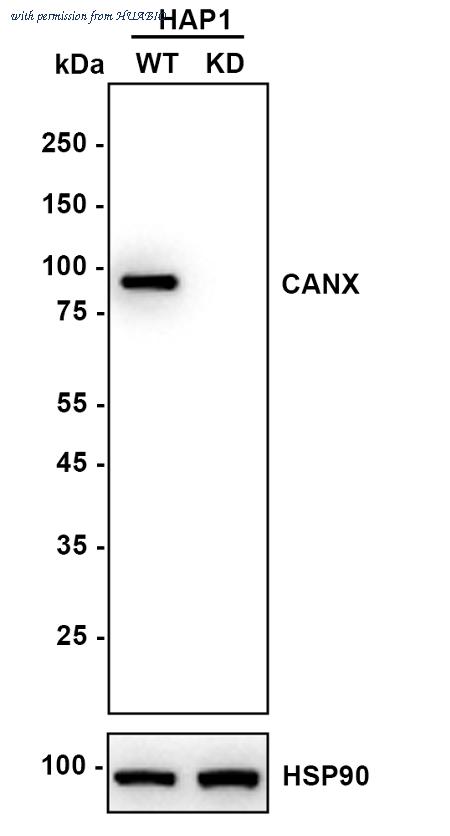

Western blot analysis of Calnexin on different lysates with Rabbit anti-Calnexin antibody (ER1803-42) at 1/10,000 dilution. Lane 1: HAP1-parental cell lysate Lane 2: HAP1-Calnexin KD cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 68 kDa Observed band size: 90 kDa Exposure time: 20 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ER1803-42) at 1/10,000 dilution was used in K1803 at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 3 :

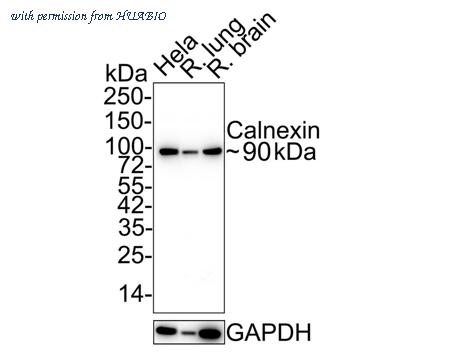

Western blot analysis of Calnexin on different lysates with Rabbit anti-Calnexin antibody (ER1803-42) at 1/2,000 dilution. Lane 1: Hela cell lysate（10 µg/Lane） Lane 2: Rat lung tissue lysate（20 µg/Lane） Lane 3: Rat brain tissue lysate（20 µg/Lane） Predicted band size: 68 kDa Observed band size: 90 kDa Exposure time: 3 minutes; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ER1803-42) at 1/2,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

product information

SKU :

ER1803-42

Target name :

Calnexin

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IHC-P,FC,IP

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within human Calnexin aa 555-592/592.

Uniprot id :

P27824>SwissProt: P27824 Human;SwissProt: P35564 Mouse

Host :

Rabbit

Isotype :

IgG

Size :

100μl

List Price :

330 USD

Storage Buffer :

1*PBS (pH7.4), 0.2% BSA, 50% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Immunogen affinity purified.

Product type :

Rabbit polyclonal Antibody

Positive control :

Daudi cell lysate, mouse lung tissue lysate, human kidney tissue, SKOV-3, Hela cell lysate, rat lung tissue lysate, rat brain tissue lysate, rat brain tissue, human brain tissue, mouse brain tissue.

Molecular wt :

Predicted band size: 68 kDa

Subcellular location :

Endoplasmic reticulum membrane, Endoplasmic reticulum, Melanosome.

Concentration :

1 mg/mL.

Recommended dilutions :

WB:1:2,000- 1:10,000 ;IHC-P: 1:200-1:500 ;FC: 1:50-1:100 ;IP: 1-2μg/sample

Advanced Validation :

Knockdown (KD)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ER1803-42_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-Calnexin antibody (ER1803-42) at 1/500 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1803-42) at 1/500 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ER1803-42_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded human brain tissue with Rabbit anti-Calnexin antibody (ER1803-42) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1803-42) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/ER1803-42_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded mouse brain tissue with Rabbit anti-Calnexin antibody (ER1803-42) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1803-42) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/ER1803-42_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded rat brain tissue with Rabbit anti-Calnexin antibody (ER1803-42) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1803-42) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/ER1803-42_8.jpg

Pic legend8 :

Flow cytometric analysis of SKOV-3 cells labeling Calnexin. Cells were fixed and permeabilized. Then stained with the primary antibody (ER1803-42, 1ug/ml) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

Pic img9 :

https://storage.huabio.cn/huabio/productImg/ER1803-42_9.jpg

Pic legend9 :

Calnexin was immunoprecipitated from 0.2 mg HeLa cell lysate with ER1803-42 at 2 µg/10 µl beads. Western blot was performed from the immunoprecipitate using ER1803-42 at 1/1,000 dilution. Anti-Rabbit IgG for IP Nano-secondary antibody (NBI01H) at 1/5,000 dilution was used for 1 hour at room temperature. Lane 1: HeLa cell lysate (input) Lane 2: ER1803-42 IP in HeLa cell lysate Lane 3: Rabbit IgG instead of ER1803-42 in HeLa cell lysate Blocking/Dilution buffer: 5% NFDM/TBST Exposure time: 23 seconds; ECL: K1801
