DIAPH3 | HUABIO ER1802-54 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

DIAPH3

catalog :

ER1802-54

quantity :

100μl

price :

330 USD

clonality :

polyclonal

host :

domestic rabbit

conjugate :

nonconjugated

reactivity :

human

application :

western blot, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

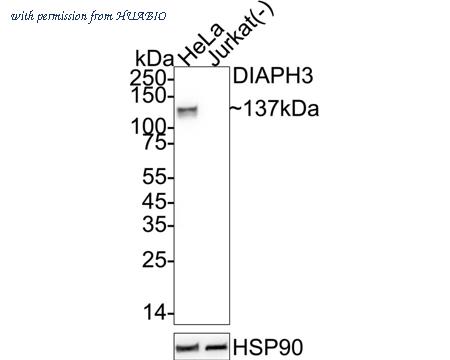

Western blot analysis of DIAPH3 on different lysates with Rabbit anti-DIAPH3 antibody (ER1802-54) at 1/2,000 dilution. Lane 1: HeLa cell lysate Lane 2: Jurkat cell lysate (negative) Lysates/proteins at 20 µg/Lane. Predicted band size: 137 kDa Observed band size: 137 kDa Exposure time: 25 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ER1802-54) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

Immunohistochemical analysis of paraffin-embedded human placenta tissue with Rabbit anti-DIAPH3 antibody (ER1802-54) at 1/400 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1802-54) at 1/400 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

image 3 :

Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-DIAPH3 antibody (ER1802-54) at 1/400 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1802-54) at 1/400 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

product information

SKU :

ER1802-54

Target name :

DIAPH3

Species reactivity :

Human

Applications :

WB,IHC-P

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within Human DIAPH3 aa 1,059-1,108 / 1,193.

Uniprot id :

Q9NSV4>SwissProt: Q9NSV4 Human

Host :

Rabbit

Isotype :

IgG

Size :

100μl

List Price :

330 USD

Storage Buffer :

1*PBS (pH7.4), 0.2% BSA, 50% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Immunogen affinity purified.

Product type :

Rabbit polyclonal Antibody

Positive control :

HeLa cell lysate, human placenta tissue, human kidney tissue, human prostate cancer tissue, human cervical smooth muscle tissue.

Molecular wt :

Predicted band size: 137 kDa

Subcellular location :

Cytoplasm, Nucleus.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:2,000 ;IHC-P: 1:200-1:400

Advanced Validation :

Relative expression (RE)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ER1802-54_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded human prostate cancer tissue with Rabbit anti-DIAPH3 antibody (ER1802-54) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1802-54) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ER1802-54_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded human cervical smooth muscle tissue with Rabbit anti-DIAPH3 antibody (ER1802-54) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1802-54) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
