SHP2 | HUABIO ER1706-93 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

SHP2

catalog :

ER1706-93

quantity :

100μl

price :

330 USD

clonality :

polyclonal

host :

domestic rabbit

conjugate :

nonconjugated

reactivity :

human, mouse, rat

application :

western blot, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

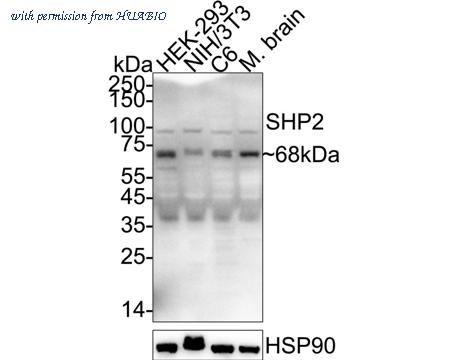

Western blot analysis of SHP2 on different lysates with Rabbit anti-SHP2 antibody (ER1706-93) at 1/20,000 dilution. Lane 1: HEK-293 cell lysate Lane 2: NIH/3T3 cell lysate Lane 3: C6 cell lysate Lane 4: Mouse brain tissue lysate Lysates/proteins at 15 µg/Lane. Predicted band size: 68 kDa Observed band size: 68 kDa Exposure time: 25 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ER1706-93) at 1/20,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

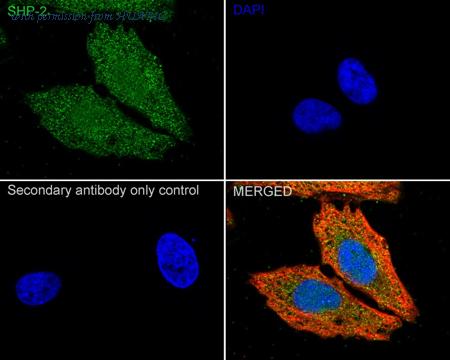

Immunocytochemistry analysis of HeLa cells labeling SHP2 with Rabbit anti-SHP2 antibody (ER1706-93) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-SHP2 antibody (ER1706-93) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

image 3 :

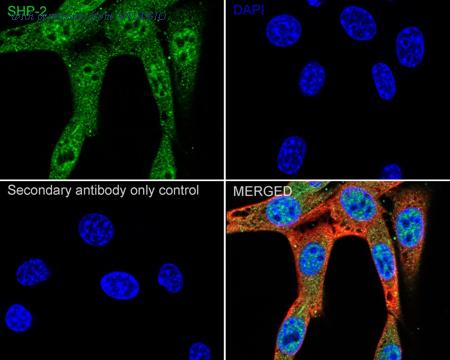

Immunocytochemistry analysis of NIH/3T3 cells labeling SHP2 with Rabbit anti-SHP2 antibody (ER1706-93) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-SHP2 antibody (ER1706-93) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

product information

SKU :

ER1706-93

Target name :

SHP2

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IHC-P,FC

Conjugate :

Non-conjugated

Immunogen :

Recombinant protein within human SHP-2 aa 359-575.

Uniprot id :

Q06124>SwissProt: Q06124 Human;SwissProt: P35235 Mouse;SwissProt: P41499 Rat

Host :

Rabbit

Isotype :

IgG

Size :

100μl

List Price :

330 USD

Storage Buffer :

1*PBS (pH7.4), 0.2% BSA, 50% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Immunogen affinity purified.

Product type :

Rabbit polyclonal Antibody

Positive control :

HEK-293 cell lysate, NIH/3T3 cell lysate, C6 cell lysate, Mouse brain tissue lysate, HeLa, NIH/3T3, C6, human brain tissue, human colon cancer tissue, human endometrium cancer tissue, mouse brain tissue, rat brain tissue.

Molecular wt :

Predicted band size: 68 kDa

Subcellular location :

Cytoplasm, Nucleus.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:20,000 ;IF-Cell: 1:100 ;IHC-P: 1:200-1:1,000 ;FC: 1:1:1,000

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ER1706-93_4.jpg

Pic legend4 :

Immunocytochemistry analysis of C6 cells labeling SHP2 with Rabbit anti-SHP2 antibody (ER1706-93) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-SHP2 antibody (ER1706-93) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ER1706-93_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded human brain tissue with Rabbit anti-SHP2 antibody (ER1706-93) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1706-93) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/ER1706-93_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded human colon cancer tissue with Rabbit anti-SHP2 antibody (ER1706-93) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1706-93) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/ER1706-93_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded human endometrium cancer tissue with Rabbit anti-SHP2 antibody (ER1706-93) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1706-93) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/ER1706-93_8.jpg

Pic legend8 :

Immunohistochemical analysis of paraffin-embedded mouse brain tissue with Rabbit anti-SHP2 antibody (ER1706-93) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1706-93) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img9 :

https://storage.huabio.cn/huabio/productImg/ER1706-93_9.jpg

Pic legend9 :

Immunohistochemical analysis of paraffin-embedded rat brain tissue with Rabbit anti-SHP2 antibody (ER1706-93) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1706-93) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img10 :

https://storage.huabio.cn/huabio/productImg/ER1706-93_10.jpg

Pic legend10 :

Flow cytometric analysis of HeLa cells labeling SHP2. Cells were fixed and permeabilized. Then stained with the primary antibody (ER1706-93, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).
