alpha Tubulin | HUABIO ER130905 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

alpha Tubulin

catalog :

ER130905

quantity :

100μl

price :

330 USD

clonality :

polyclonal

host :

domestic rabbit

conjugate :

nonconjugated

reactivity :

human, mouse, rat, zebrafish

application :

western blot, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

Western blot analysis of alpha Tubulin on different lysates with Rabbit anti-alpha Tubulin antibody (ER130905) at 1/5,000 dilution. Lane 1: HeLa cell lysate (20 µg/Lane) Lane 2: PC-12 cell lysate (20 µg/Lane) Lane 3: NIH/3T3 cell lysate (20 µg/Lane) Lane 4: Daudi cell lysate (20 µg/Lane) Lane 5: Jurkat cell lysate (20 µg/Lane) Lane 6: A431 cell lysate (20 µg/Lane) Lane 7: K-562 cell lysate (20 µg/Lane) Predicted band size: 50 kDa Observed band size: 50 kDa Exposure time: 3 minutes; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ER130905) at 1/5,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

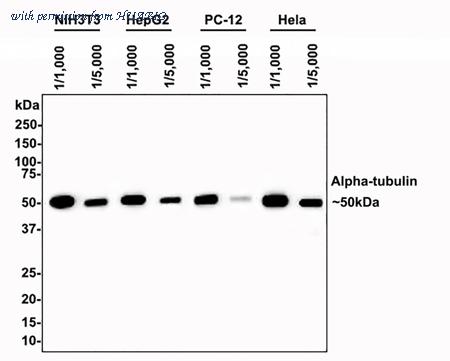

Western blot analysis of alpha Tubulin on different lysates with Rabbit anti-alpha Tubulin antibody (ER130905) at different dilutions. Lane 1/2: NIH3T3 cell lysate at 1/1,000 and 1/5,000 dilution Lane 3/4: HepG2 cell lysate at 1/1,000 and 1/5,000 dilution Lane 5/6: PC-12 cell lysate at 1/1,000 and 1/5,000 dilution Lane 7/8: Hela cell lysate at 1/1,000 and 1/5,000 dilution Lysates/proteins at 10 µg/Lane. Predicted band size: 50 kDa Observed band size: 50 kDa Exposure time: 1 minute; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ER130905) at different dilutions were used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/100,000 dilution was used for 1 hour at room temperature.

image 3 :

ICC staining of alpha Tubulin in HepG2 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 10% negative goat serum for 15 minutes at room temperature. Cells were probed with the primary antibody (ER130905, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 conjugate-Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

product information

SKU :

ER130905

Target name :

alpha Tubulin

Species reactivity :

Human,Mouse,Rat,Zebrafish

Applications :

WB,IHC-P,FC,IF-Cell,IF-Tissue

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within Human Alpha-tubulin aa 402-451 / 451.

Uniprot id :

P68366>SwissProt: P68366 Human;SwissProt: P68368 Mouse;SwissProt: Q5XIF6 Rat

Host :

Rabbit

Isotype :

IgG

Size :

100μl

List Price :

330 USD

Storage Buffer :

1*PBS (pH7.4), 0.2% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Immunogen affinity purified.

Product type :

Rabbit polyclonal Antibody

Positive control :

HeLa cell lysate, PC-12 cell lysate, NIH/3T3 cell lysate, Daudi cell lysate, Jurkat cell lysate, A431 cell lysate, K-562 cell lysate, HepG2, Hela, Neuro-2a, C6, human stomach tissue, human tonsil tissue, mouse pancreas tissue, rat large intestine tissue.

Molecular wt :

Predicted band size: 50 kDa

Subcellular location :

Cytoplasm, Cytoskeleton, Microtubule.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:5,000-1:50,000 ;IHC-P: 1:200-1:500 ;IF-Cell: 1:200-1:500 ;IF-Tissue: 1:200

Pic img4 :

https://storage.huabio.cn/huabio/productImg/ER130905_4.jpg

Pic legend4 :

ICC staining of alpha Tubulin in Hela cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 10% negative goat serum for 15 minutes at room temperature. Cells were probed with the primary antibody (ER130905, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 conjugate-Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

Pic img5 :

https://storage.huabio.cn/huabio/productImg/ER130905_5.jpg

Pic legend5 :

Immunocytochemistry analysis of Neuro-2a cells labeling alpha Tubulin with Rabbit anti-alpha Tubulin antibody (ER130905) at 1/250 dilution. Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-alpha Tubulin antibody (ER130905) at 1/250 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/ER130905_6.jpg

Pic legend6 :

Immunocytochemistry analysis of C6 cells labeling alpha Tubulin with Rabbit anti-alpha Tubulin antibody (ER130905) at 1/250 dilution. Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-alpha Tubulin antibody (ER130905) at 1/250 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/ER130905_7.jpg

Pic legend7 :

Immunofluorescence staining of paraffin-embedded human stomach tissue using anti-alpha Tubulin antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with ER130905 at 1/50 dilution for 10 hours at 4℃ and detected using Alexa Fluor® 594 conjugate-Goat anti-Rabbit IgG (H+L) Secondary Antibody at a dilution of 1:500 for 1 hour at room temperature.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/ER130905_8.jpg

Pic legend8 :

Immunohistochemical analysis of paraffin-embedded human tonsil tissue using anti-alpha Tubulin antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER130905, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img9 :

https://storage.huabio.cn/huabio/productImg/ER130905_9.jpg

Pic legend9 :

Immunohistochemical analysis of paraffin-embedded mouse pancreas tissue using anti-alpha Tubulin antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER130905, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img10 :

https://storage.huabio.cn/huabio/productImg/ER130905_10.jpg

Pic legend10 :

Immunofluorescence analysis of paraffin-embedded human stomach tissue labeling alpha Tubulin with Rabbit anti-alpha Tubulin antibody (ER130905) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (ER130905, green) at 1/200 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).

Pic img11 :

https://storage.huabio.cn/huabio/productImg/ER130905_11.jpg

Pic legend11 :

Immunofluorescence analysis of paraffin-embedded mouse pancreas tissue labeling alpha Tubulin with Rabbit anti-alpha Tubulin antibody (ER130905) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (ER130905, green) at 1/200 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).

Pic img12 :

https://storage.huabio.cn/huabio/productImg/ER130905_12.jpg

Pic legend12 :

Immunofluorescence analysis of paraffin-embedded rat large intestine tissue labeling alpha Tubulin with Rabbit anti-alpha Tubulin antibody (ER130905) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (ER130905, green) at 1/200 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).
