CD68 | HUABIO EM1901-93 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

CD68

catalog :

EM1901-93

quantity :

100μl

price :

360.00 USD

clonality :

monoclonal

host :

mouse

conjugate :

nonconjugated

clone name :

A3C2

reactivity :

human

application :

western blot, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

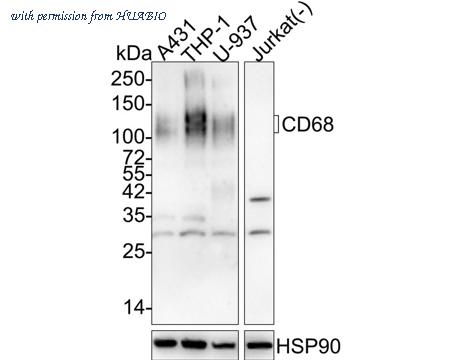

Western blot analysis of CD68 on different lysates with Mouse anti-CD68 antibody (EM1901-93) at 1/1,000 dilution. Lane 1: A431 cell lysate Lane 2: THP-1 cell lysate Lane 3: U-937 cell lysate Lane 4: Jurkat cell lysate (negative) Lysates/proteins at 20 µg/Lane. Predicted band size: 37 kDa Observed band size: 100-150 kDa Exposure time: 1 minute 4 seconds; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (EM1901-93) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Mouse IgG - HRP Secondary Antibody (HA1006) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

Immunohistochemical analysis of paraffin-embedded human tonsil tissue with Mouse anti-CD68 antibody (EM1901-93) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (EM1901-93) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

image 3 :

Immunohistochemical analysis of paraffin-embedded human spleen tissue using anti-CD68 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (EM1901-93, 1/200) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

product information

SKU :

EM1901-93

Target name :

CD68

Species reactivity :

Human

Applications :

WB,IHC-P,FC

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within human CD68 aa 320-354.

Uniprot id :

P34810>SwissProt: P34810 Human

Host :

Mouse

Clone number :

A3C2

Isotype :

IgG1

Size :

100μl

List Price :

360.00 USD

Storage Buffer :

1*PBS (pH7.4), 0.2% BSA, 50% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Protein G affinity purified.

Product type :

Mouse monoclonal Antibody

Positive control :

A431 cell lysate, THP-1 cell lysate, U-937 cell lysate, human tonsil tissue, human spleen tissue, human liver tissue, human hepatic carcinoma tissue, THP-1.

Molecular wt :

Predicted band size: 37 kDa.

Subcellular location :

Cell membrane. Endosome membrane, lysosome membrane.

Concentration :

2 mg/mL.

Recommended dilutions :

WB: 1:500-1:1,000 ;IHC-P:1:50-1:200 ;FC:1:50-1:100

Advanced Validation :

Relative expression (RE)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/EM1901-93_4.jpg

Pic legend4 :

Immunohistochemical analysis of paraffin-embedded human liver tissue using anti-CD68 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (EM1901-93, 1/200) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/EM1901-93_5.jpg

Pic legend5 :

Immunohistochemical analysis of paraffin-embedded human hepatic carcinoma tissue using anti-CD68 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (EM1901-93, 1/200) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/EM1901-93_6.jpg

Pic legend6 :

Flow cytometric analysis of CD68 was done on THP-1 cells. The cells were fixed, permeabilized and stained with the primary antibody (EM1901-93, 1/50) (red). After incubation of the primary antibody at room temperature for an hour, the cells were stained with a Alexa Fluor 488-conjugated Goat anti-Mouse IgG Secondary antibody at 1/1000 dilution for 30 minutes.Unlabelled sample was used as a control (cells without incubation with primary antibody; black).
