L1CAM | HUABIO 0805-5 product information

product summary

company name :

HUABIO

product type :

antibody

product name :

L1CAM

catalog :

0805-5

quantity :

100μl

price :

330 USD

clonality :

polyclonal

host :

domestic rabbit

conjugate :

nonconjugated

reactivity :

human, mouse, rat

application :

western blot, flow cytometry, immunohistochemistry - paraffin section

more info or order :

HUABIO product webpage


image 1 :

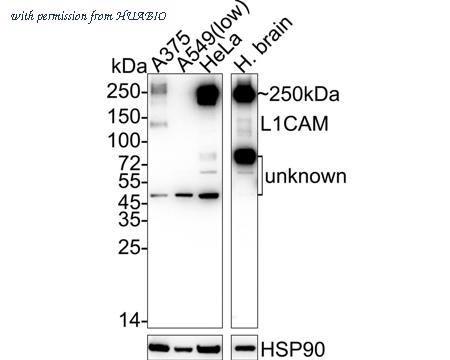

Western blot analysis of L1CAM on different lysates with Rabbit anti-L1CAM antibody (0805-5) at 1/1,000 dilution. Lane 1: A375 cell lysate Lane 2: A549 cell lysate (low expression) Lane 3: HeLa cell lysate Lane 4: Human brain tissue lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 140 kDa Observed band size: 250 kDa Exposure time: 1 minute; ECL: K1802; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (0805-5) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

image 2 :

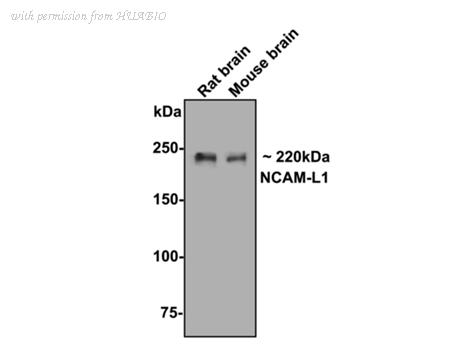

Western blot analysis of L1CAM on different lysates with Rabbit anti-L1CAM antibody (0805-5) at 1/1,000 dilution. Lane 1: Rat brain tissue lysate Lane 2: Mouse brain tissue lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 140 kDa Observed band size: 220 kDa Exposure time: 2 minute; 6% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (0805-5) at 1/1,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:200,000 dilution was used for 1 hour at room temperature.

image 3 :

Immunocytochemistry analysis of A375 cells labeling L1CAM with Rabbit anti-L1CAM antibody (0805-5) at 1/200 dilution. Cells were fixed in 4% paraformaldehyde for 10 minutes at 37 ℃, permeabilized with 0.05% Triton X-100 in PBS for 20 minutes, and then blocked with 2% negative goat serum for 30 minutes at room temperature. Cells were then incubated with Rabbit anti-L1CAM antibody (0805-5) at 1/200 dilution in 2% negative goat serum overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclear DNA was labelled in blue with DAPI.

product information

SKU :

0805-5

Target name :

L1CAM

Species reactivity :

Human,Mouse,Rat

Applications :

WB,IF-Cell,IHC-P,FC

Conjugate :

Non-conjugated

Immunogen :

Synthetic peptide within Human L1CAM aa 1,208-1,257 / 1,257.

Uniprot id :

P32004>SwissProt: P32004 Human;SwissProt: P11627 Mouse;SwissProt: Q05695 Rat

Host :

Rabbit

Isotype :

IgG

Size :

100μl

List Price :

330 USD

Storage Buffer :

1*PBS (pH7.4), 0.2% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Form :

Liquid

Storage Instruction :

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Purity :

Immunogen affinity purified.

Product type :

Rabbit polyclonal Antibody

Positive control :

A375 cell lysate, HeLa cell lysate, human brain tissue lysate, rat brain tissue lysate, mouse brain tissue lysate, A375, 293T, Hela, human breast cancer tissue, human kidney tissue, mouse kidney tissue, SHG-44.

Molecular wt :

Predicted band size: 140 kDa

Subcellular location :

Cell membrane, Cell projection, Membrane.

Concentration :

1 mg/mL.

Recommended dilutions :

WB: 1:500-1:1,000 ;IF-Cell: 1:50-1:200 ;IHC-P: 1:50-1:600 ;FC: 1:50-1:100

Advanced Validation :

Relative expression (RE)

Pic img4 :

https://storage.huabio.cn/huabio/productImg/0805-5_4.jpg

Pic legend4 :

ICC staining NCAML1 in 293T cells (green). The nuclear counter stain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilised with 0.25% Triton X100/PBS.

Pic img5 :

https://storage.huabio.cn/huabio/productImg/0805-5_5.jpg

Pic legend5 :

ICC staining NCAML1 in Hela cells (green). The nuclear counter stain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilised with 0.25% Triton X100/PBS.

Pic img6 :

https://storage.huabio.cn/huabio/productImg/0805-5_6.jpg

Pic legend6 :

Immunohistochemical analysis of paraffin-embedded human breast cancer tissue using anti-NCAML1 antibody. Counter stained with hematoxylin.

Pic img7 :

https://storage.huabio.cn/huabio/productImg/0805-5_7.jpg

Pic legend7 :

Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-L1CAM antibody (0805-5) at 1/600 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (0805-5) at 1/600 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Pic img8 :

https://storage.huabio.cn/huabio/productImg/0805-5_8.jpg

Pic legend8 :

Immunohistochemical analysis of paraffin-embedded mouse kidney tissue using anti-NCAML1 antibody. Counter stained with hematoxylin.

Pic img9 :

https://storage.huabio.cn/huabio/productImg/0805-5_9.jpg

Pic legend9 :

Flow cytometric analysis of SHG-44 cells with NCAML1 antibody at 1/100 dilution (red) compared with an unlabelled control (cells without incubation with primary antibody; black). Alexa Fluor 488-conjugated goat anti-rabbit IgG was used as the secondary antibody.
