Anti-Raf1 Antibody Picoband™
Boster
catalog: A00446-1

domestic rabbit polyclonal
reactivity: human, mouse, rat
application: western blot, flow cytometry

Figure 1. Western blot analysis of Raf1 using anti-Raf1 antibody (A00446-1). . Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions. Lane 1: rat kidney tissue lysate,. Lane 2: mouse kidney tissue lysate,. Lane 3: human MCF-7 whole cell lysate,. Lane 4: human 22RV1 whole cell lysate,. Lane 5: human Hela whole cell lysate. After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-Raf1 antigen affinity purified polyclonal antibody (Catalog # A00446-1) at 0.5 ug/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for Raf1 at approximately 73KD. The expected band size for Raf1 is at 73KD.

Figure 2. Flow Cytometry analysis of HeLa cells using anti- Raf1 antibody (A00446-1). Overlay histogram showing HeLa cells stained with PB10089 (Blue line).The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti- Raf1 Antibody (A00446-1,1ug/1x10 6 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10ug/1x10 6 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1ug/1x10 6 ) used under the same conditions. Unlabelled sample (Red line) was also used as a control.
quantity: 100 ug/vial
price: 315 USD
to the supplier

Anti-Raf1 Rabbit Monoclonal Antibody
Boster
catalog: M00446-1

domestic rabbit monoclonal (BEC-18)
reactivity: human, mouse, rat
application: western blot, immunohistochemistry, immunocytochemistry

Western blot analysis of Raf1 expression in K562 cell lysate (M00446-1). Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions. After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-RAF1 monoclonal antibody (Catalog # M00446-1) overnight at 4 C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for RAF1
quantity: 100 µl
price: 315 USD
to the supplier

Anti-Phospho-Raf1 (S621) Rabbit Monoclonal Antibody
Boster
catalog: P00446-4

domestic rabbit monoclonal (IOF-18)
reactivity: human, mouse, rat
application: western blot

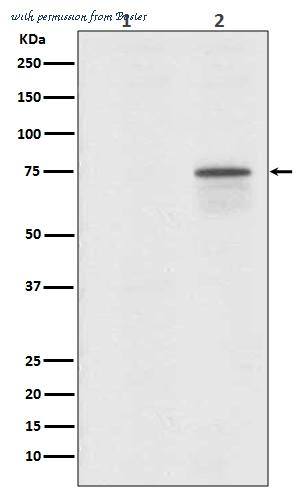

Western blot analysis of Phospho-Raf1 (S621) expression in (1) HeLa cell lysate treated with LP; (2) HeLa cell lysate (P00446-4). Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions. After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-RAF1 monoclonal antibody (Catalog # P00446-4) overnight at 4℃, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for RAF1
quantity: 100 µl
price: 315 USD
to the supplier

Anti-Phospho-Raf1 (S259) Rabbit Monoclonal Antibody
Boster
catalog: P00446-5

domestic rabbit monoclonal (IOH-18)
reactivity: human, mouse, rat
application: western blot, immunohistochemistry

Western blot analysis of Phospho-Raf1 (S259) expression in (1) 293T cell lysate; (2) 293T cell lysates treated with Okadaic Acid + Calyculin A (P00446-5). Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions. After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-RAF1 monoclonal antibody (Catalog # P00446-5) overnight at 4℃, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for RAF1
quantity: 100 µl
price: 315 USD
to the supplier

Anti-Raf1 Rabbit Monoclonal Antibody
Boster
catalog: M00446

domestic rabbit monoclonal (IAG-18)
reactivity: human
application: western blot, immunocytochemistry

Western blot analysis of Raf1 expression in HeLa cell lysate (M00446). Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions. After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-RAF1 monoclonal antibody (Catalog # M00446) overnight at 4 , then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for RAF1
quantity: 100 µl
price: 315 USD
to the supplier

Anti-Phospho-Raf1 (S43) Rabbit Monoclonal Antibody
Boster
catalog: P00446-3

domestic rabbit monoclonal (ICO-18)
reactivity: human, mouse, rat
application: western blot

Western blot analysis of Phospho-Raf1 (S43) expression in (1) HeLa cell lysate treated with LP; (2) HeLa cell lysate (P00446-3). Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions. After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-RAF1 monoclonal antibody (Catalog # P00446-3) overnight at 4℃, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for RAF1
quantity: 100 µl
price: 315 USD
to the supplier
