Anti-CNGA4 Antibody | Alomone Labs APC-074 product information

product summary

company name :

Alomone Labs

product type :

antibody

product name :

Anti-CNGA4 Antibody

catalog :

APC-074

clonality :

polyclonal

host :

domestic rabbit

conjugate :

nonconjugated

clone name :

reactivity :

mouse, rat

application :

western blot, immunohistochemistry, immunocytochemistry

more info or order :

Alomone Labs product webpage


image 1 :

Western blot analysis of rat brain lysate: - 1. Anti-CNGA4 Antibody (#APC-074), (1:200).2. Anti-CNGA4 Antibody, preincubated with CNGA4 Blocking Peptide (#BLP-PC074).

image 2 :

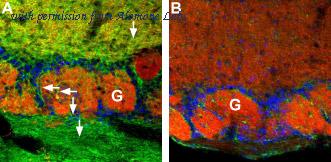

Expression of CNGA4 in mouse olfactory bulb - Immunohistochemical staining of CNGA4 channel in mouse olfactory bulb using Anti-CNGA4 Antibody (#APC-074). A. CNGA4 staining (green) appears in glomeruli (horizontal arrows) and outside the glomeruli (vertical arrows). To define the location of glomeruli (G), the same section was stained with mouse anti-synaptophysin (red) and the nissl stain DAPI (blue). B. Pre-incubation of Anti-CNGA4 Antibody with the peptide antigen blocks the staining in the olfactory bulb.

image 3 :

Expression of CNGA4 in mouse olfactory bulb - Immunohistochemical staining of CNGA4 channel in mouse olfactory bulb usingAnti-CNGA4 Antibody (#APC-074). A. CNGA4 staining (green) appears in glomeruli (horizontal arrows) and outside the glomeruli (vertical arrows). To define the location of glomeruli (G) the same section was stained with mouse anti-synaptophysin (red) and the nissl stain DAPI (blue). B. Pre-incubation of Anti-CNGA4 Antibody with the peptide antigen blocks the staining in the olfactory bulb.

product information

CAT :

APC-074

SKU :

APC-074-CF_0.2 ml

Product Name :

Anti-CNGA4 Antibody

Group Type :

Antibodies

Product Type :

Antibodies

Clonality :

Polyclonal

Accession :

Q64359

Applications :

IF IHC WB

Reactivity :

Rat Mouse

Host :

Rabbit

Blocking Peptide :

BLP-PC074

Homology :

Mouse - identical; human - 15/18 amino acid residues identical

Formulation :

PBS pH7.4

isotype :

Rabbit IgG

Peptide confirmation :

Confirmed by amino acid analysis and mass spectrometry

Reconstitution :

0.2 ml double distilled water (DDW).

Antibody Concentration After Reconstitut ... :

1 mg/ml

Storage After Reconstitution :

The reconstituted solution can be stored at 4°C for up to 1 week. For longer periods, small aliquots should be stored at -20°C. Avoid multiple freezing and thawing. Centrifuge all antibody preparations before use (10000 x g 5 min).

Preservative :

No Preservative

Immunogen Location :

Intracellular, N-terminus

Label :

Unconjugated

Storage Before Reconstitution :

The antibody ships as a lyophilized powder at room temperature. Upon arrival, it should be stored at -20°C

Shipping and storage :

Shipped at room temperature. Product as supplied can be stored intact at room temperature for several weeks. For longer periods, it should be stored at -20°C

immunogen source species :

Rat

Sequence :

Product Page - Scientific background :

Cyclic Nucleotide-Gated (CNG) channels belong to the superfamily of voltage-gated ion channels. Although permeable to various ions such as the monovalent Na+ and K+ ions, and the divalent Ca2+ ion, they are gated by the intracellular binding of the cyclic nucleotides cAMP and cGMP and not by voltage per se (CNGs bind preferably to cGMP)1.Six channels form this subfamily: The A subunit (CNGA1-4) and the B subunit (CNGB1 and CNGB3). Functional entities are formed by the assembly of four subunits. Each subunit consists of six membrane spanning domains, where the fourth transmembrane domain is highly positively charged, a pore domain between transmembrane domains five and six, and intracellular N- and C-termini. The cyclic nucleotide binding domain is located in the C-terminal region and is responsible for the channel gating upon cyclic nucleotide binding1.These channels are highly expressed in retinal photoreceptors and olfactory neurons where their role has been extensively studied2. CNG channels have also been detected in brain, testis and kidney although their role in these tissues has yet to be unraveled2. When heterologously expressed all subunits with exception of CNGA4, CNGB1 and CNGB3 can form functional homomeric channels. In olfactory sensory neurons, CNG channels which are formed by two CNGA2, one CNGA4 subunits and an isoform of CNGB1, are activated by the binding of cAMP, whose levels increase in response to the binding of odorant molecules to their respective receptors1,3.CNGA4 knockout mice are fertile and morphologically similar to their wild type littermates4,5. In these mice, the olfactory bulb and epithelium are developed but these mice display defects in odor adaptation, and at the molecular level, they are less sensitive to cAMP activation6.

Applications may also work in :

IF IHC WB

Supplier :

Alomone Labs

Target :

Cyclic nucleotide-gated cation channel alpha-4, CNG4, Cyclic nucleotide-gated olfactory channel subunit OCNC2, OCNCb

Short Description :

A Rabbit Polyclonal Antibody to CNGA4 Channel

Long Description :

Anti-CNGA4 Antibody (#APC-074) is a highly specific antibody directed against an epitope of the rat protein. The antibody can be used in western blot and immunohistochemistry applications. It has been designed to recognize CNGA4 from human, rat, and mouse samples.

Negative Control :

BLP-PC074

Positive Control :

Synonyms :

Cyclic nucleotide-gated cation channel alpha-4, CNG4, Cyclic nucleotide-gated olfactory channel subunit OCNC2, OCNCb

Lead Time :

1-2 Business Days

Country of origin :

Israel/IL

Applications key :

CBE- Cell-based ELISA, FC- Flow cytometry, ICC- Immunocytochemistry, IE- Indirect ELISA, IF- Immunofluorescence, IFC- Indirect flow cytometry, IHC- Immunohistochemistry, IP- Immunoprecipitation, LCI- Live cell imaging, N- Neutralization, WB- Western blot

Specifictiy :

CNGA4

Form :

Lyophilized powder. Reconstituted antibody contains phosphate buffered saline (PBS), pH 7.4.

Comment :

Contact Alomone Labs for technical support and product customization

Species reactivity key :

H- Human, M- Mouse, R- Rat

Is Toxin :

Purity :

Affinity purified on immobilized antigen.

UNSPSC :

41116161

Clone :

Standard quality control of each lot :

Western blot analysis

Antigen preadsorption control :

1 µg peptide per 1 µg antibody

Application Dilutions: Immunohistochemis ... :

Contact Alomone for information

Application Dilutions: Western blot wb :

1:200
